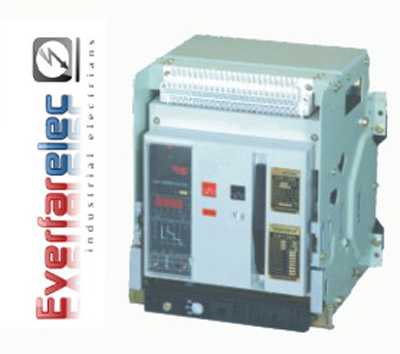

ACB YCW1 Air Circuit Breaker
Model: YCW1
Categories: Air Circuit Breaker
Description
YCW1 Series Intelligent Universal Circuit Breaker I. E. ACB, is mainly used in the low voltage distribution switchboard to control and protect power distribution system. Its technical index reaches the international advanced standard of that kind of products in 1990s and conforms to criteria for low voltage breaker in IEC60947-2
Intelligent Universal Circuit Breaker
Model: YCW1
Categories: Air Circuit Breaker
Description
Applicant:
YCW1 Series Intelligent Universal Circuit Breaker i. E. ACB, is mainly used in the low voltage distribution switchboard to control and protect power distribution system. Its technical index reaches the international advanced standard of that kind of products in 1990s and conforms to criteria for low voltage breaker in IEC60947-2

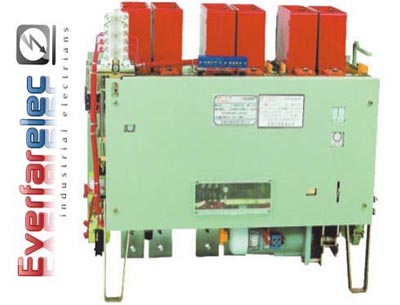

Air Circuit Breaker DW15 Series
Model: DW15
Categories: Air Circuit Breaker
Description
DW15 series air circuit breakers(hereinafter called circuit breaker)are rated 100A to 4000A in current(up to 630A for limiting current open circuit)and AC 50HZ 380V in voltage.The breaker is mainly used to distribute electric energy in the power distribution network and to prevent the circuit and power source quipment from overload,undervoltage and short circuit.DW15-200,400and 630 can also be used in AC50Hz 380V electric network to protect the motor from overload,undervoltage or short circuit,orin 660V or 1140V power distribution network to offer above protections.Under the normal conditions,the breaker can be used to switch the circuit and start the moyor infrequently.with the current limiting characristics,the current-limiting breaker is especially suitable for the network where large short-circuit current is likely to occur.

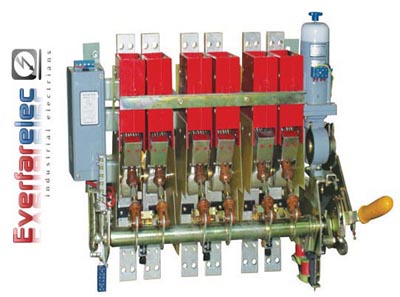

Air Circuit Breaker DW16 series
Model: DW16
Categories: Air Circuit Breaker
Description
DW16 series universal circuit breaker is mainly used in the distruibution networks of AC 400V/690V, 50Hz for power distribution protecting the lines and equipments from overload, undervoltage and short circuit. Besides, it can also be used for infrequent ON and OFF operations.
The rated currrent is up to 4000A
Completed accessories available.
Product standards: IEC60947-2.

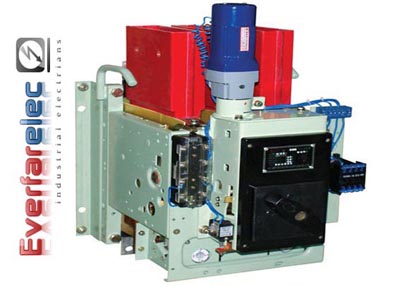

Air Circuit Breaker DW 17 Series
Model: DW17
Categories: Air Circuit Breaker
Description
1. Model: DW17
2. Standard: IEC60947-2
3. Function: Overload&short circuit protection
4. Rated voltage: 400V/690V
5. Rated current: 630~4000A
6. Frequency: 50Hz
