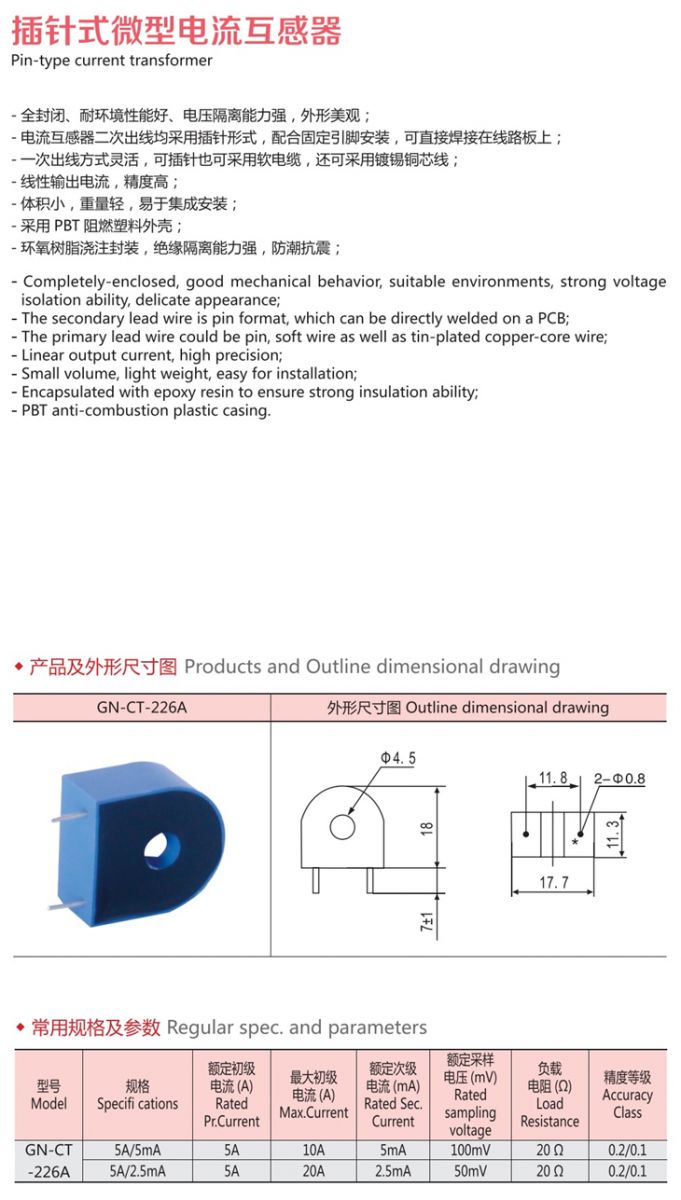

Pin type mini current transformer

Mini PCB Mount Current Transformer



Features
Low cost. Low profile for PCB mounting
High accuracy, wide linear range, low phase shift error
Burn-resistant case and filler

Specifications
Accuracy Class: 0.1
Dielectric strength: 2500V/min
Dielectric Resistance: 1000M Ohms @ 500 VDC
Working frequency 50-400Hz
Ambient temperature: -25degrees~+85degrees
RoHS Compliant
CE-approved
Customer specifications are available

Application
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances.
